The PKD-DK4216 kit includes a 4 CH H.264 DVR and four indoor/outdoor IR security cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.

The ZMD-DD-SBN4 is a 4 channel, fully integrated, real time and hardware-based digital video recorder. This DVR is based on an embedded Linux operating system. With network access, VGA video output, and USB2.0 backup, this DVR is perfect for the home or small business. This DVR also features the most updated Remote View via 3G mobile phone.

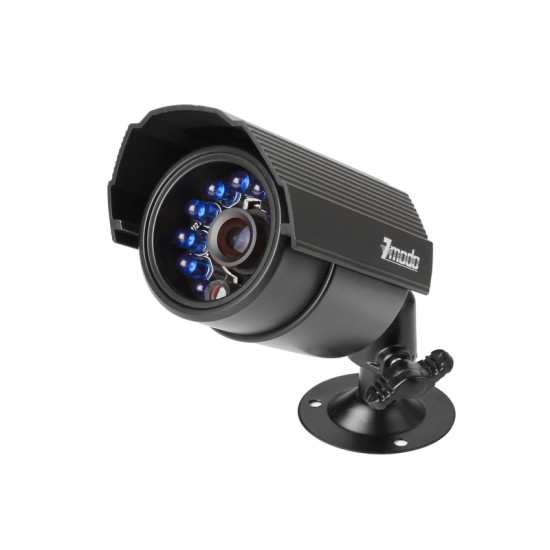

The cameras included in the kit are 1/4" color CMOS IR night vision outdoor cameras. All cables and power supplies are included.

DVR Features

* Embedded Linux OS
* H.264 Hardware Compression
* No Hard Drive is Installed and Configured
* Supports up to 2TB HD
* Video Input / Output: BNC 4/BNC 1
* Audio Input / Output: RCA 4/BNC1
* Other Video Output: VGA
* Signal System: NTSC / PAL
* Display: 120 fps
* Record: 120 fps
* Recording Mode: Continuous/ Scheduled/ Motion
* Display Mode: Each/ All/ Auto Switch/ Hidden
* Playback Search: Time & Date, Event List
* Network: RJ45 TCP/IP or DDNS
* Remote Access: LAN or IE Browser
* Support Remote View via 3G Mobile
* PTZ via RS-485 Port
* Plug-n-Play

Camera Features

* 1/4" Color CMOS Image Sensor
* 600 TV Lines, Horizontal
* 6mm Lens
* Signal: NTSC
* Night Vision Min. Light: 0 Lux (IR On)
* IR Irradiation Distance: up to 30'
* Operation Temperature: 14F~122F
* Weatherproof: Yes
* Power: 12V DC
* Mount: Ceiling or Wall
* Video Connector: BNC
* Power Connector: RCA 12V DC
* Color: Silver or Black
